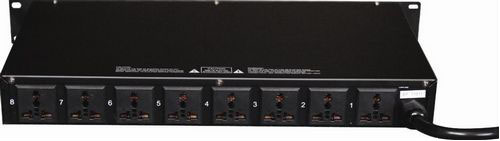

PSC830A Time Sequencer Power Controllers

Features:

·Provide multi-channel power output channel
·Multi-functional universal power socket
·The maximum current of single channel can be up to 30 A
·One key switch to open time sequencer function.
·Equipped with emergency bypass channel
·Provide network control interface, which can centrally control the opening and closing of the system through the theater equipment management

PSC series time sequencer power includes PSC830, PSC1230, PSC1630, PSC830A, PSC1230A and PSC1630A, six varieties altogether, which respectively provide 8, 12, 16 power output channels. It uses multi-function universal power socket, so the maximum current of single channel can be up to 30 A. Panels will show channel state. Moreover, it has one key switch to open time sequencer function.

Technical parameters

PSC830

PSC1230

PSC1630

Rrated output voltage

AC220V/50HZ

Rated output current per channel

30A

Controlled power

8channel

12channel

16channel

Delay duration per channel

1second

Dimensions(H×W×D) (mm)

57mm×295mm × 452mm
(H×W×D)

57mm×295mm × 452mm  (H×W×D)

57mm×295mm × 452mm (H×W×D)

Net weight(KG)

6.5

7.8

8.4
