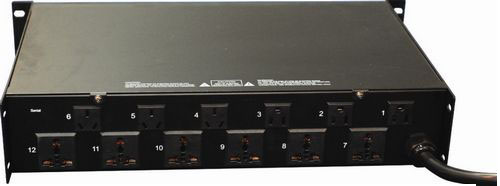

PSC1230A Time Sequencer Power Controllers

Features:

·Provide multi-channel power output channel
·Multi-functional universal power socket
·The maximum current of single channel can be up to 30 A
·One key switch to open time sequencer function.
·Equipped with emergency bypass channel
·Provide network control interface, which can centrally control the opening and closing of the system through the theater equipment management

PSC series time sequencer power includes PSC830, PSC1230, PSC1630, PSC1230A and PSC1530A,five varieties altogether, which respectively provide 8, 12, 16 ,15power output channels. The action delay time of each power supply is 1 second. It uses multi-function universal power socket, so the maximum current of single channel can be up to 30 A. Panels will show channel state. Moreover, it has one key switch to open time sequencer function.

PSC1230A, and PSC1530A provide network control interface, which can switch on/off system centralized control through the cinema equipment management.

Parameters
PSC830
PSC1230
PSC1230A
PSC1630
PSC1530A
Number of channels
8
12
16
15
Maximum input power
28W
37W
45W
Maximum input power
30A
Control
Online
Exist
Network
Nil
Nil
Exist
Nil
Exist
Rated output voltage
220V 5060Hz
Dimensions
483mm×227mm × 67mm (H×W×D)
483mm×295mm × 105mm (H×W×D)
Net weight (KG)
6
8
9
